What tolerances can FortiFab maintain on sheet metal parts?

Our fiber laser and brake forming processes routinely hold ±0.005 inch tolerances on length and ±0.5° on formed angles, keeping assemblies within machining limits.

Which metals and thicknesses can you process?

We profile aluminum, stainless, mild steel, copper, brass, and titanium. Laser cutting handles up to 1 inch mild steel, while turret punching supports aluminum to 0.1875 inch and copper or brass to 0.125 inch.

Do you provide finishing and hardware insertion?

Yes. Our assembly cell covers hardware insertion, riveting, grinding, and powder coating so fabricated parts can ship production-ready.

Sheet metal fabrication

Laser cutting, punching, forming, and finishing for production-ready parts and assemblies

FortiFab's sheet metal capabilities support infrastructure enclosures, cabinets, brackets, panels, guards, and fabricated components from file review through finished production.

Laser & Fiber Laser Cutting

Our laser cutting services utilize a 3kW fiber laser system, capable of maintaining precise tolerances up to ±0.001 inches, suited for both detailed custom projects and robust high-volume production.

System Features:
• High Volume Pallet Changer Automation
• Superior Sheet Utilization CAM Process
• Sheet size capacity: 60" x 120"

Materials & Thicknesses:
• Aluminum: ≤ 0.50"
• Stainless Steel: ≤ 0.50"
• Mild Steel: ≤ 1.00"
• Copper: ≤ 0.3125"
• Brass: ≤ 0.3125"
• Titanium: ≤ 0.3125"

Vision: Expanding capabilities through acquisition of higher power laser systems and advanced automation technology.

Programming Demo

Assembly & Finishing

Our assembly capabilities utilize state-of-the-art robotics and AI-driven systems to optimize precision and efficiency across a wide range of operations.

Capabilities:
• Complex Assemblies
• Hardware Insertion
• Riveting

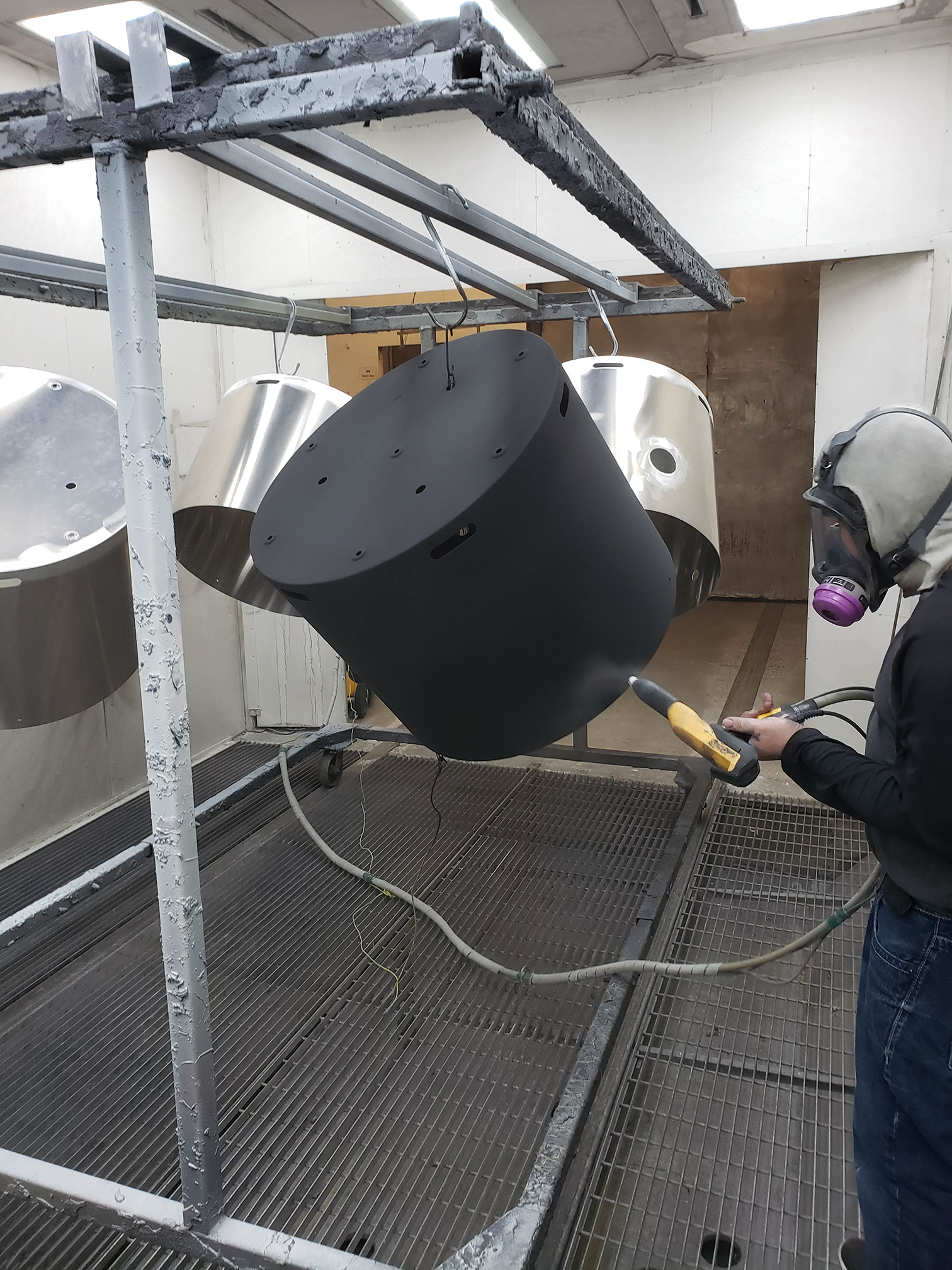

• Powder Coating
• Finishing Services
• Grinding
• Sanding
• Conformance Testing
• Software Guided Quality Adherence
• Automated Packaging and Labelling

Tolerance: ±0.005 inches for optimal performance
Materials: Metals, polymers, and composite blends

Vision: Pioneering advanced robotics and computer-assisted manufacturing integration for enhanced efficiency.

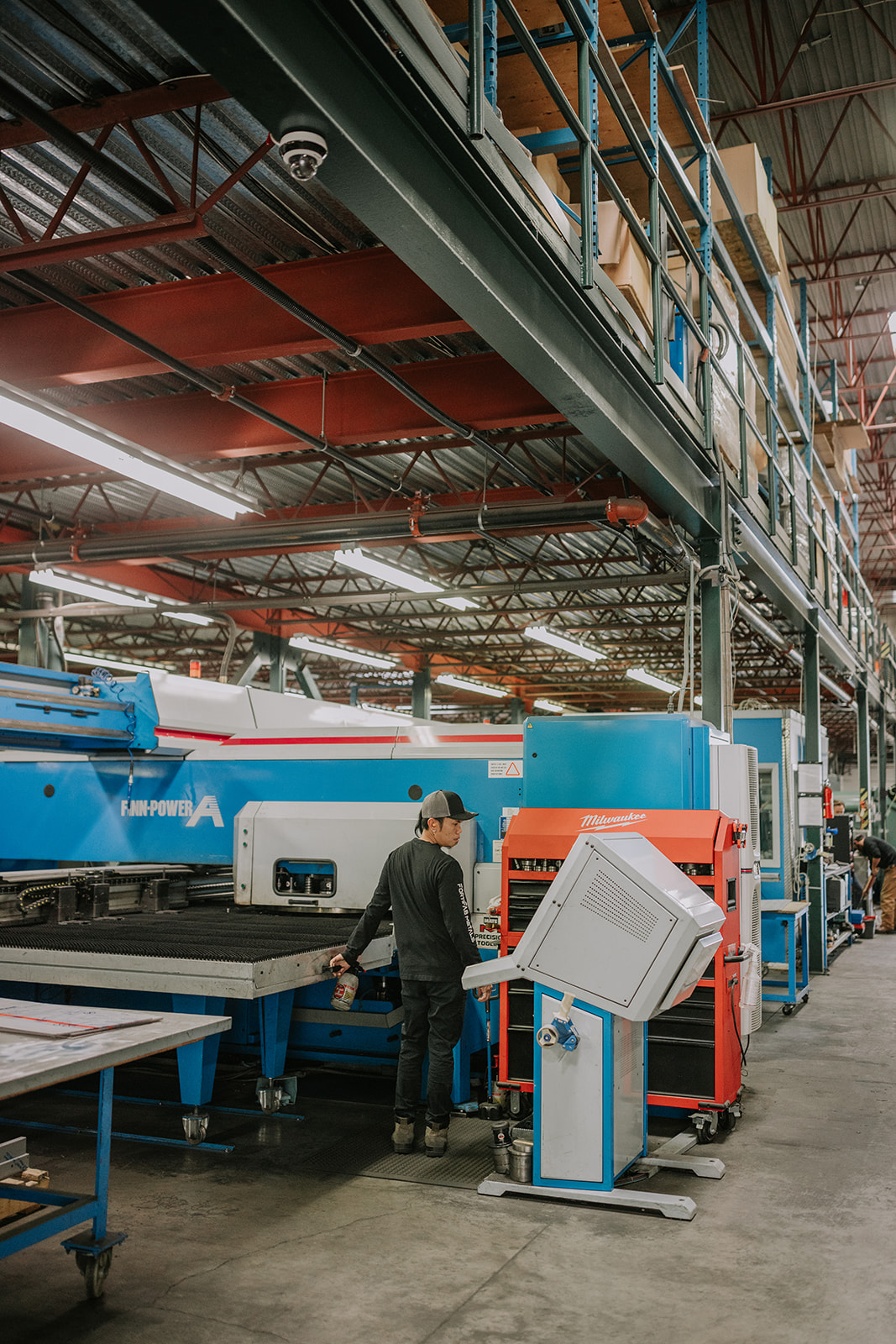

Thick Tool Turret Punching

Our punching capabilities feature a robust 100 Tonne Press, accommodating sheets up to 48" x 120", perfect for high-volume perforations and intricate forming tools.

Specifications:
• Press Capacity: 100 Tonne
• Sheet Size: Up to 48" x 120"
• Tolerance: ≤ 0.0156"

Material Capacities:
• Aluminum: ≤ 0.1875"
• Stainless Steel: ≤ 0.08"
• Mild Steel: ≤ 0.10"
• Copper: ≤ 0.125"
• Brass: ≤ 0.125"
• Thermo Plastics: ≤ 0.125"

Applications:
• Specialized forming tools
• Soffiting applications
• Custom brewery vessel solutions

Vision: Acquiring fiber laser punch combination with automation for enhanced forming, tapping, and profiling capabilities.

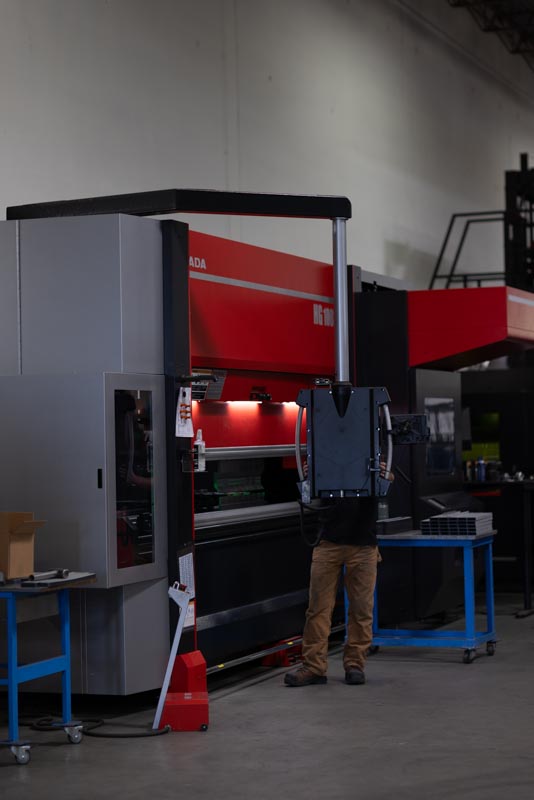

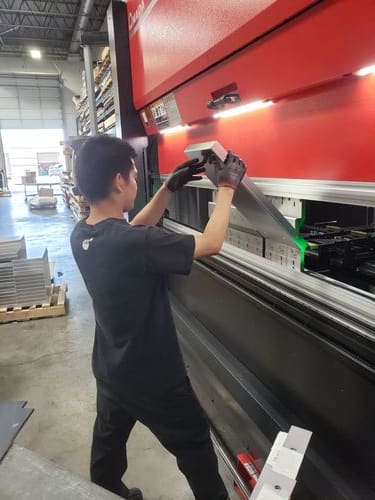

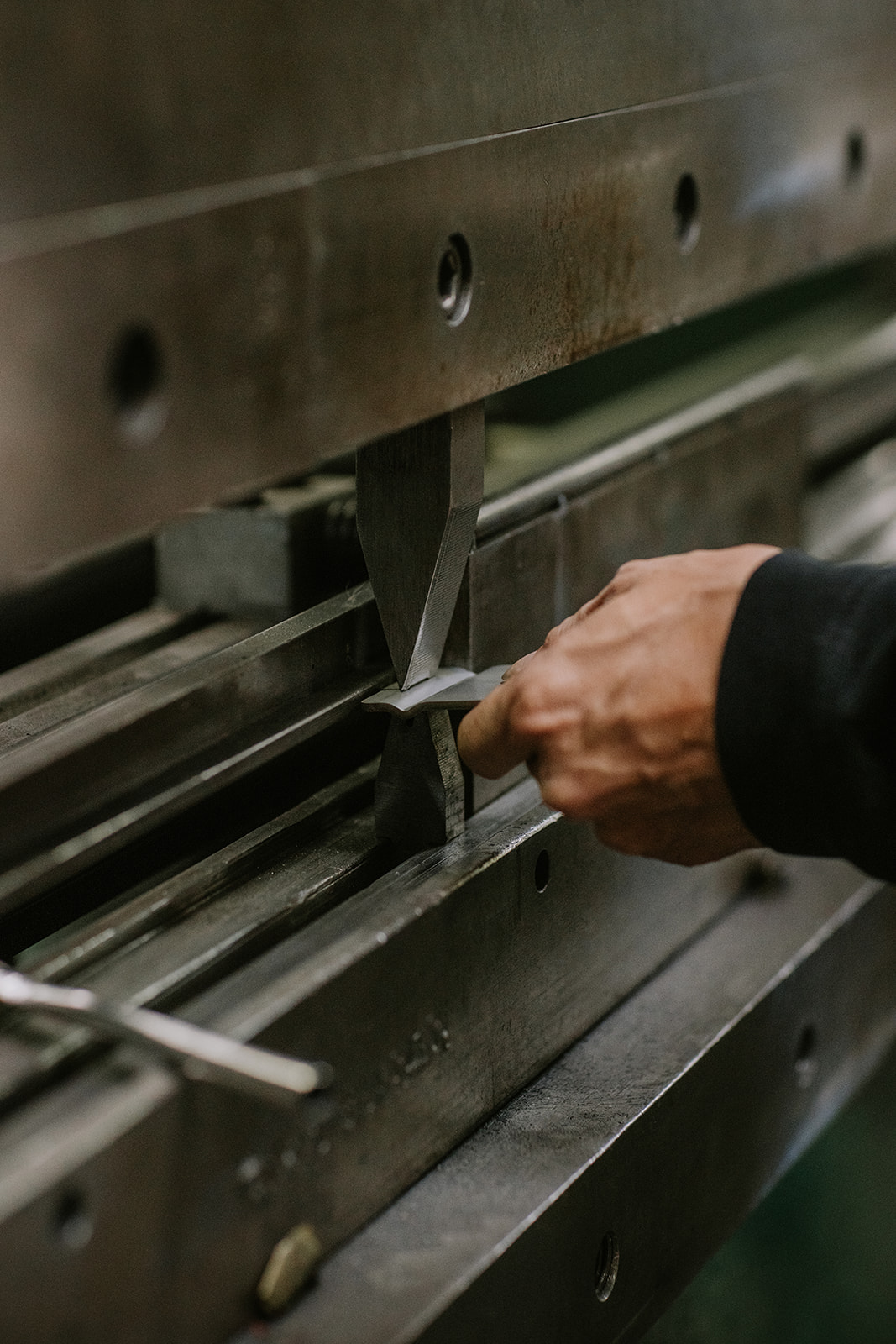

Brake Press Forming

Our forming services deliver precision and efficiency with up to 100 Max Tonnage and 116-inch maximum length capability.

Specifications:
• Max Tonnage: 100
• Max Length: 116 inches
• Angle Tolerance: ±0.5°
• Length Tolerance: ±0.01"

Materials:
• A36 Steel
• 1008 AISI
• 430, 304, 316 Stainless Steel
• 1000 & 5000 Series Aluminum
• Brass
• Copper
• Titanium

Features:
• High-accuracy gauges
• Automatic tooling adjustments
• Efficient high-volume batching
• Quick changeover for prototypes

Vision: Implementation of Salvagnini automated panel bender for enhanced architectural panel production.
